Description

  Specification

IPv4

IPv4 VLAN  Interface/IPv4  Static  Routes/ARP

IPv6

IPv6 VLAN  Interface/IPv6 Static  Routes/IPv6  ND

Port

Port Switch configuration
Port  Description  configuration
Port  Duplex  configuration
Port  Flow Control configuration
Jumbo  Frame
EEE
Fiber Module(DDM)

Link Aggregation

Supports load balance policy; Base on MAC and IP-MAC

Storm Control

Boardcast suppression/Unknown Multicast/Unknown Unicast

Port Mirroring

One to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups

Port Security

MAC Address Constraints
Port Security MAC Address
Protect/Restrict/Shutdown
Port Isolation/Port Rate-limit/Loopback Detection: Support

VLAN

Access/Trunk/Hybrid
VLAN Tunnel  （Q-in-Q Tunnel）
VLAN range 1-4094, maximum active VLAN is 256
Voice VLAN/MAC VLAN/Surveillance VLAN/Protocol VLAN
GVRP

 Multicast

 IIGMP Snooping
IGMPV1/V2/V3
Router Port
Static IGMP group address
IGMP groups filtering
Querier
MLD Snooping
MVR

QoS

Traffic classification based, Strict priority and WRR Port Priority
802.1P Priority/IP TOS Priority/IP DSCP Priority

DHCP

DHCP Server/IP Pool/Static Binding/Port Static Binding /DHCP Relay

Access Protocol

HTTP
HTTPS
Telnet
SSHv2
Manager ACL
Session Timeout
Password Retry Count
Silent Time

SNMP MIB

RADIUS/TACACS+/802.1X
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2863 Interface MIB
LLDP
Private MIB

Description

  Specification

Interface

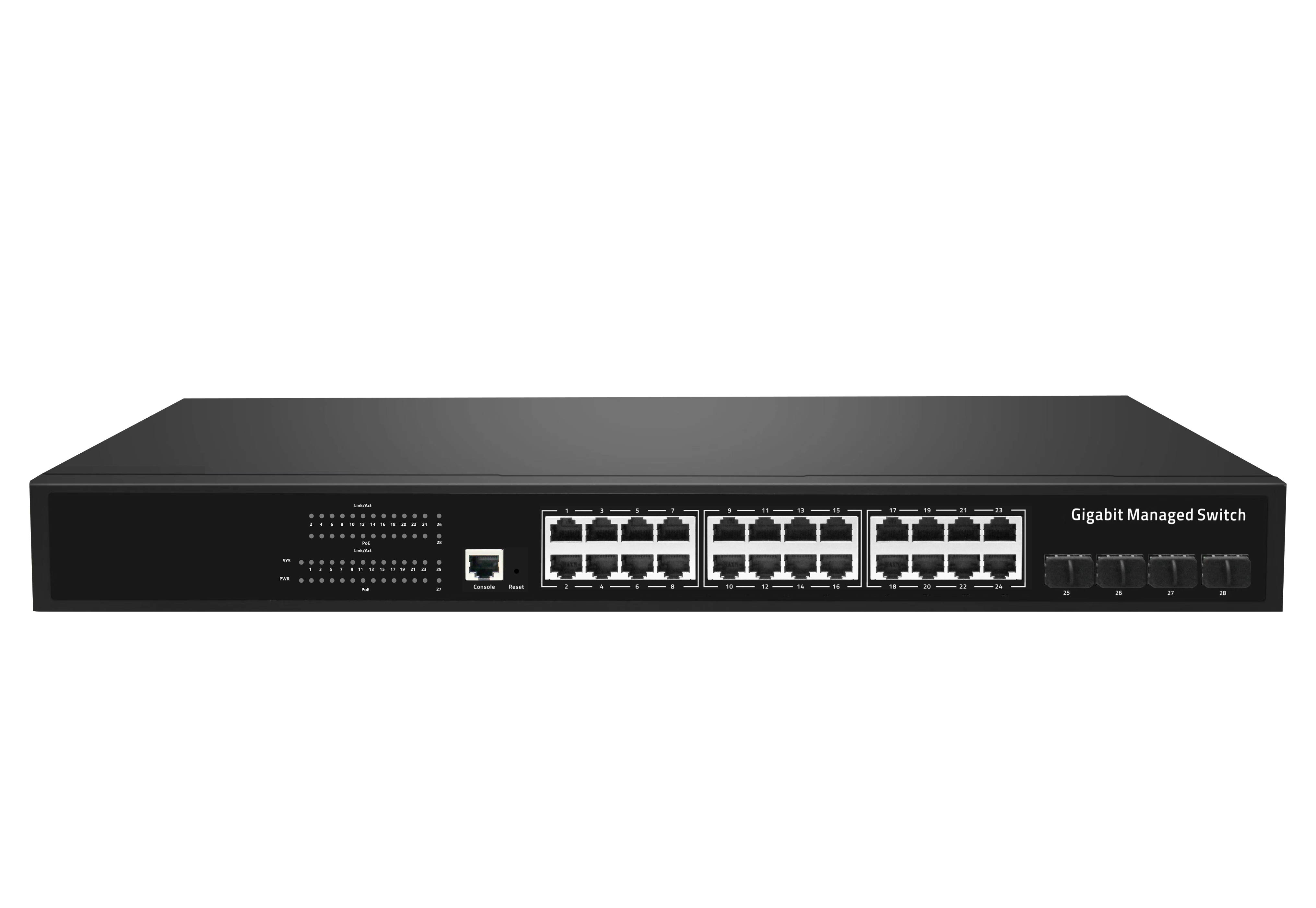

24*1G PoE Ports，  4*SFP Ports，1*RJ45 Console Port

Port Standard

IEEE 802.3i:10BASE-T Ethernet;

IEEE 802.3u:100BASE-X Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber)

Bandwidth

56Gbps

Packet Forwarding Rate

41.66 Mpps

PoE Power Budget

370W

Packet Buffer

4Mbit

MAC Address Table

8K

Transmission Method

Store and Forward

Jumbo Frame

10K

PoE Standard

IEEE802.3af (15.4W)，IEEE802.3at (30W)

PoE Port Output Voltage

DC 44-57V

PoE Ports

Port 1-24 PoE power output ≤30W

Power Supply

AC 100-240V  50/60Hz ，DC 54V 7.5A

Fan Quantity

Fanless

Surge  Protection

Port protection: common mode 4KV, differential mode 2KV ;

ESD Protection

Air: 8 KV, Contact: 6 KV

Installation

Rack-mounting
