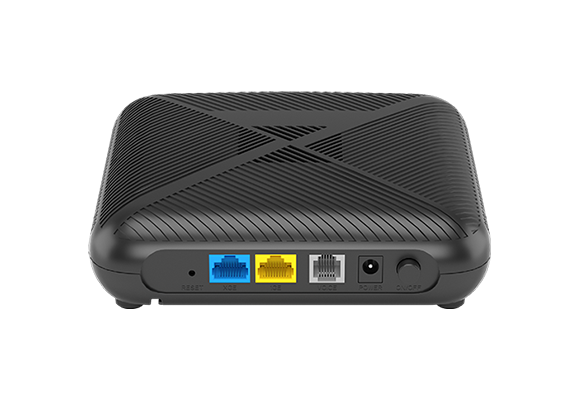

XP602XVR
2-Ports XGS PON
Access to 10-Gigabit-capable Passive Optical Network
XGS-PON ONU, ITU-T G.9807.1 Compliant
1*10GE LAN + 1*GE LAN + 1*POTS
Compatible With Main-stream OLT Platforms
  • Specifications
General

General

GPON Standards

ITU-T G.984

Distance

20Km Max

Data Rates

Upstream:10Gbps, Downstream:10Gbps

Hardware

Interfaces

1 x SC/APC GPON Port, 1 x GE Port, 1 x 10GE Port, 1 POTS Port

Buttons

Power ON/OFF Button, Reset Button

Power Supply

DC 12V 1A

Dimensions (W X D X H)

90*73*25.2mm

Software Features

Quality of Service

WMM, Bandwidth Control

Port Forwarding

L2/L3 forwarding, L3 NAPT

VPN

802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode

Access Control

Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Management

Access Control, Local Management, Remote Management

Environment

Operating Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Relative Humidity

10%~90%, non-condensing

Storage Humidity

5%~95%, non-condensing

Package Contents

1 x X GS PON

1 x Power Adapter

1 x RJ11 Cable

Certifications

CE, RoHS
